• Test and practice for converting given electric energy into other types of electric energy
  to the required application.

• Consisting of boosting trans and coercion trans circuit that boosts and lowers voltage ofa
  lteration current

• Consisting of single phase of half-wave rectifier circuit, single phase of bridge rectifier
  circuit, 3 phase half-wave rectifier circuit and 3 phase of bridge rectifier circuit

• Fixes step-down power circuit and variable step-down power circuit that can convert into the
  proper voltage for using electrical appliances by utilizing given direct power.

• DC-DC inverter and DC-AC inverter circuit that can generate alternating current by using PV\
  cell or battery as a power.

• Adding various control functions such as inverter designed for the purpose of speed control
  of 3 phase of electric motor soft start and soft power off.

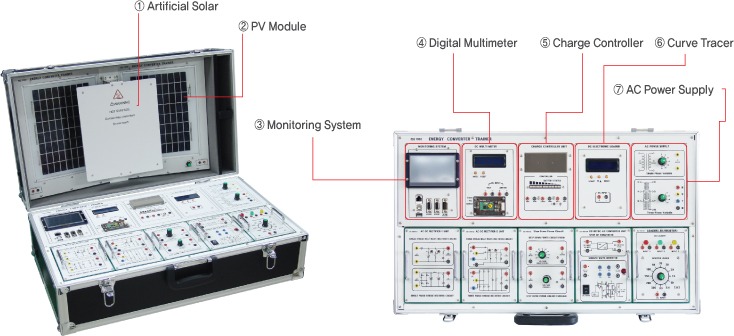

① Artificial Solar
• Halogen Lamp (150W x 2EA) / Dimming Volume

② PV Module
• 5W PV Module 2 EA
• Output Port

③ Monitoring System
• 4.3 inch touch screen color monitor
• Ethernet port 1, USB client 1, USB host 1, ST UART 1, BT UART 1, RS-485(FF UART)1
• I-V curve tracer function
• Measuring power of each modules through PLC (Power Line Communication) and Zigbee Network

④ Digital Multi Meter
• LCD Display
• Mode setting button and Reset Button for multi measuring function
• Interface socket for plug Zigbee Module or PLC Module
• DC Input port for measuring voltage and ampere from experimental modules

⑤ Charge Controller
• Battery Included
• Charge controller with battery status monitoring LED
• Input port for PV cell generated power
• Battery port for charging battery
• Load Port for connect to DC Load or inverter

⑥ Curve Tracer
• I-V Curve Characteristics  /  Built-in Load

⑦ AC Power Supply
• 1Φ 6V/ 9V/ 12V/ 15V/ 18V/ 21V/ 24V AC output
• 3Φ 6V/ 12V/ 18V/ 24V AC output

1. AC-DC Rectifier-1 : - 1Φ half wave rectifier circuit with 2 toggle switches and status monitoring LED - 1Φ bridge rectifier circuit with status monitoring LED

2. AC-DC Rectifier-2 : - 3Φ half wave rectifier circuit with 2 toggle switches and status monitoring LED - 3Φ bridge rectifier circuit with status monitoring LED

3. Step-Down Power Circuit : - Step Down (0/ 5/ 6/ 8/ 9/ 10/ 12/ 15/ 18V) - Variable Voltage Down circuit

4. DC-DC/DC-AC Converter : - Step up converter (DC input range 4 ~ 40V, DC output 12V) - Square wave inverter (DC 12V fixed input, AC 220V output, output indication lamp, 4 test point, separated on/off switch)

5. Loader (LED/Resistor) : - LED Loader (3 color) - Resistor loader (3.4Ω ~ 300Ω) - DC Electro Loader • Start and Reset button • DC Input port
